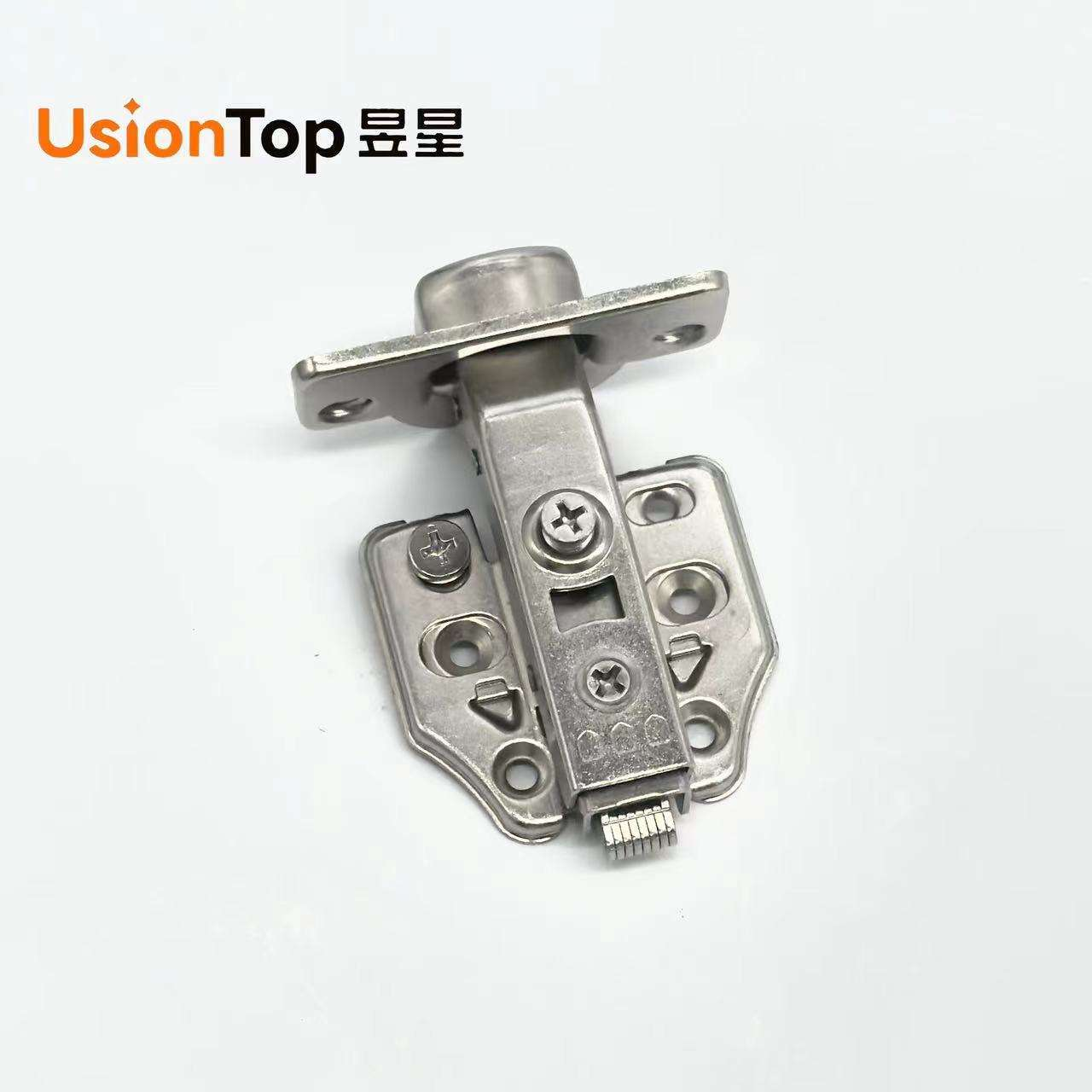

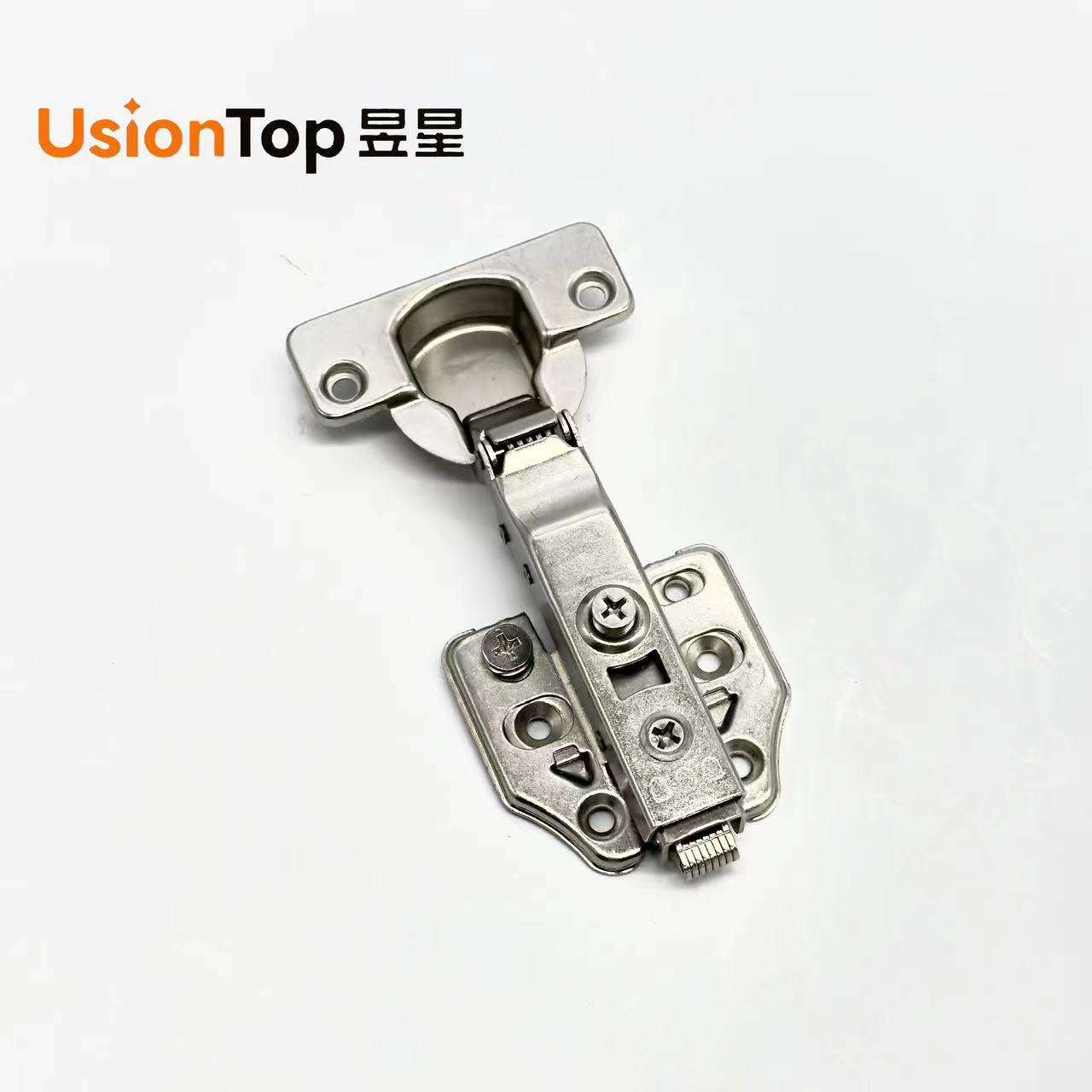

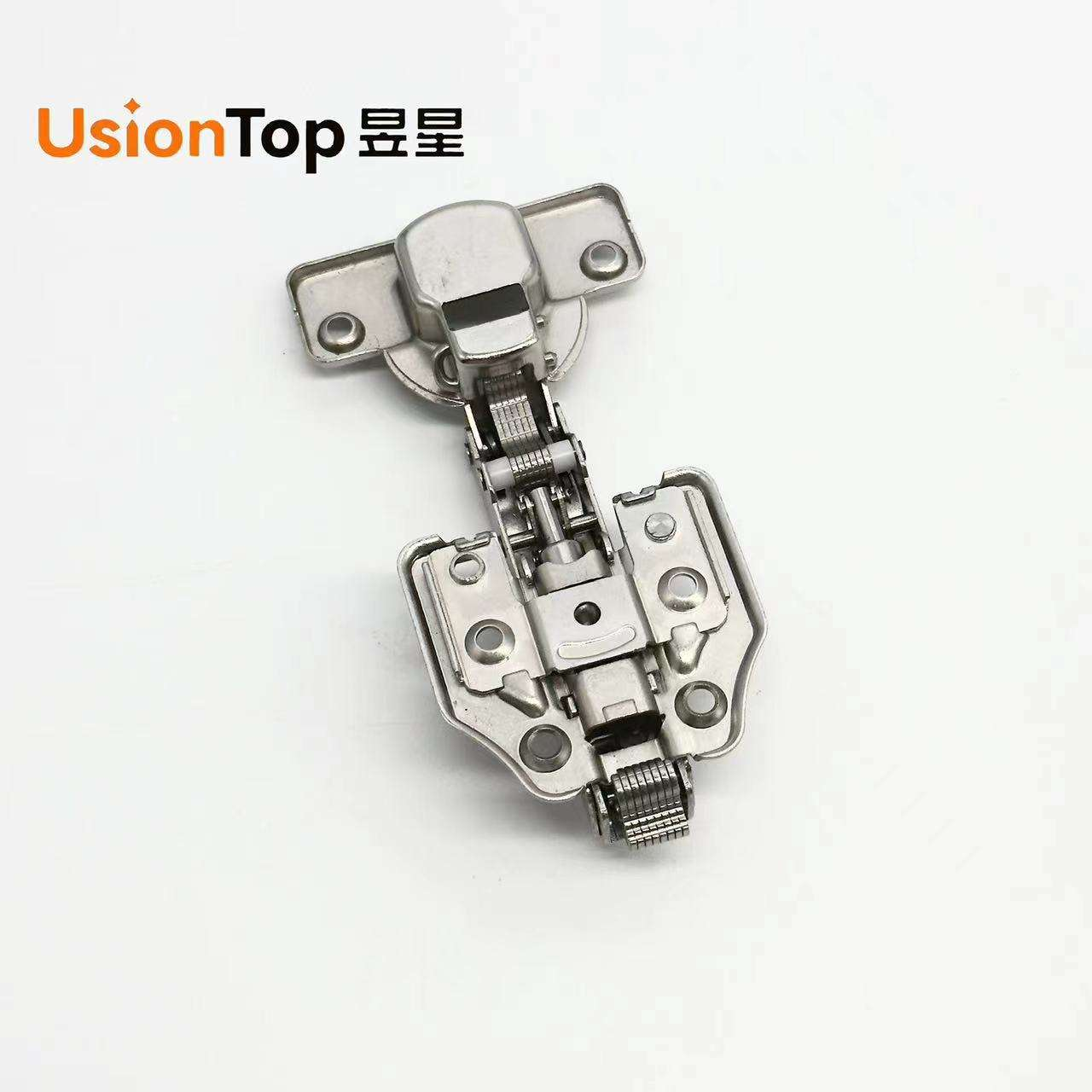

4D 6-Hole Soft Close Hinge | UsionTop Adjustable Cabinet Hinge

On April 25, 2026, hardware brand UsionTop officially launched the all-new 4D 6-Hole Automatic Hydraulic Hinge for the global home improvement market. Targeting industry pain points of traditional cabinet hinges including limited adjustment range, misaligned door gaps, and loud door slamming, this new product adopts upgraded 4D multi-dimensional adjustment, 6-hole reinforced mounting plate and hydraulic buffer technology, providing a more efficient and durable hardware solution for custom cabinet merchants and end users.

4D Precision Adjustment, 35% Faster Installation
To solve common door misalignment issues caused by uneven walls or thermal expansion of boards during custom cabinet installation, this hinge supports 4-dimensional fine-tuning: ±5mm vertical, ±3mm horizontal, ±8mm depth, and 0-7s closing speed. Installers no longer need to repeatedly remove doors for calibration; they can complete precise alignment with just a screwdriver. The installation time for a single set of cabinet doors is reduced from 8 minutes to 5.2 minutes, improving installation efficiency by 35%, perfectly solving the problems of uneven door height and inconsistent gaps.

7° Trigger Soft Buffer, 90% Lower Pinch Risk
Unlike ordinary hinges that require over 15° to trigger buffering, the upgraded hydraulic damping system of the new product automatically intervenes when the door is opened or closed to 7°. This design not only completely eliminates the slamming noise of cabinet doors, but also reduces the pinch risk of small-angle opening and closing by 90%, providing higher safety protection for families with the elderly and children. Meanwhile, the product passed the SGS 100,000 opening/closing fatigue test, with a service life twice that of ordinary hinges, no frequent replacement needed for long-term use.

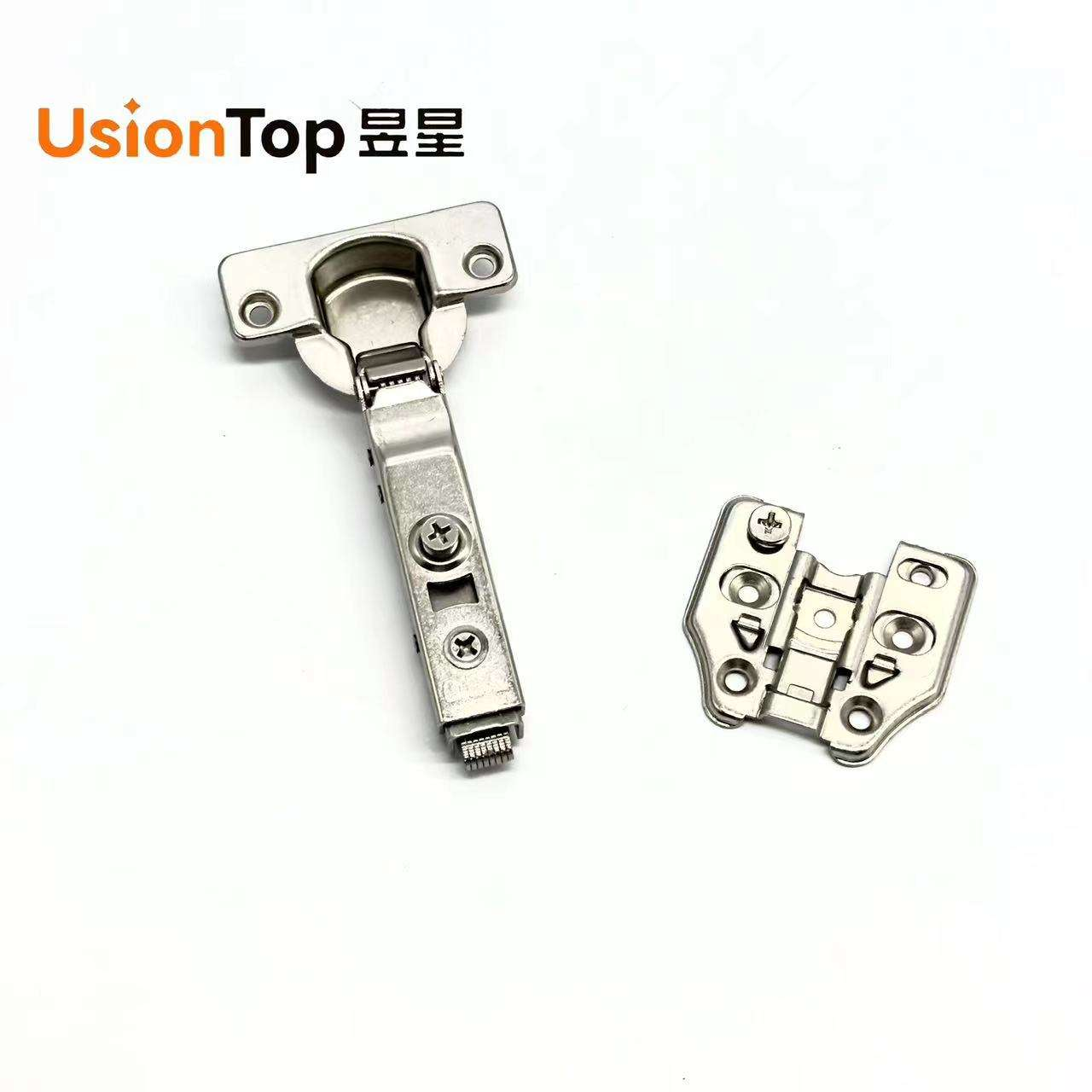

6-Hole Reinforced Mounting, No Sag for Heavy Doors

Different from the traditional 4-hole mounting plate, the new product adopts a 6-hole positioning installation design, with more uniform screw stress. The maximum load capacity of a single hinge reaches 20kg, compatible with 14-24mm thick doors. For heavy doors such as bathroom cabinets and wardrobes, the 6-hole mounting plate can effectively prevent door sagging after long-term use, keeping the cabinet door smooth and aligned for years.

Customer FAQs

Q: Can I retrofit UsionTop 4D hinge to my existing cabinets?

A: Yes. This hinge adopts a standard 35mm cup hole design, compatible with the installation holes of most conventional cabinets. You can replace the old hinge without additional drilling, easily adding soft-close function to your old cabinets.

Q: How long will this 6-hole hydraulic hinge last?

A: Our product passed the authoritative SGS 100,000 opening/closing fatigue test. Based on 20 daily openings and closings for a family, it can support more than 13 years of normal use, far higher than the industry average.

Q: What installation problems can 4D adjustment solve?

A: 4D adjustment can solve problems such as uneven door height, left-right misalignment, too wide or too tight door gaps, and too fast or too slow closing speed after installation. Even if there is a slight installation error of the cabinet body, perfect alignment can be achieved through later fine-tuning.

Q: Is this hinge suitable for thick cabinet doors?

A: Yes, this hinge supports door thickness up to 24mm, with a single load of 20kg. Two hinges can support a 40kg heavy door, which is very suitable for thick door scenarios such as custom wardrobes and bathroom cabinets.
