UsionTop 3D Hinge Adjustment Guide: Universal Solutions to Common Issues

Cabinet doors that won't close properly, have uneven gaps, or sit crookedly are common household nuisances worldwide. The good news is that for cabinets equipped with UsionTop 3D Hinges, most of these issues stem from minor hinge misalignment and can be fixed by yourself with a regular screwdriver—no professional skills required. This article breaks down the core adjustment methods for three typical problems with UsionTop 3D Hinges, suitable for users both at home and abroad.

First, let's clarify the key adjustment components of UsionTop 3D Hinges: front screws (near the door edge), base screws (fixed to the cabinet frame), and bottom screws (located at the lower part of the hinge). As 3D adjustable hinges, these three sets of screws control the door's position in three dimensions—front-back, up-down, and depth respectively. Finding the right component to adjust is the key to solving problems efficiently.

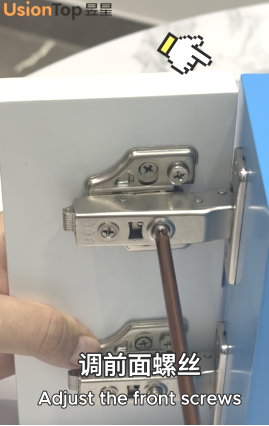

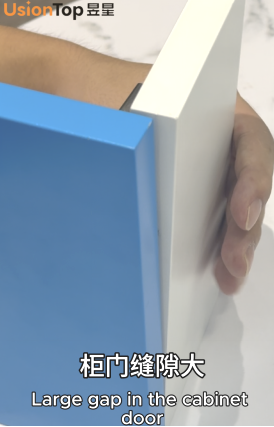

If your cabinet door has uneven gaps—either too wide or too narrow between the door and the cabinet—you need to adjust the front screws. Use a Phillips screwdriver to turn the screw clockwise to narrow the gap or counterclockwise to widen it. Check the gap frequently during adjustment; the goal is to maintain a consistent 1-2mm gap around the door, a universal standard for residential and commercial cabinets worldwide.

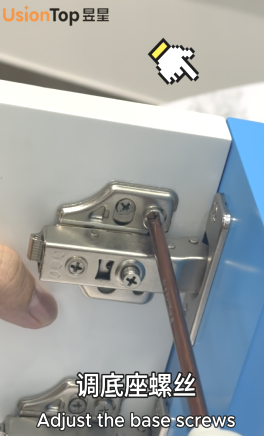

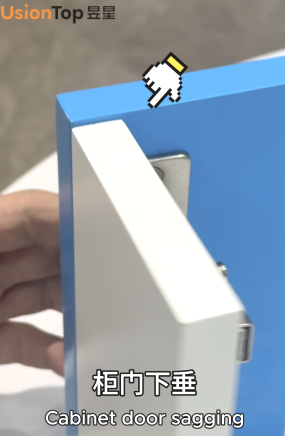

For doors that sit crookedly—one side higher than the other—adjusting the base screws will solve the problem. Locate the screw where the hinge base connects to the cabinet frame. Turning it clockwise will raise that side of the door, while turning it counterclockwise will lower it. This adjustment is particularly important for kitchen and bathroom cabinets, as crooked doors tend to trap moisture or accumulate dust.

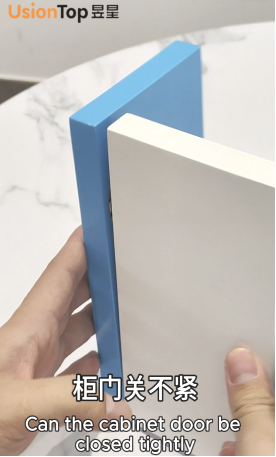

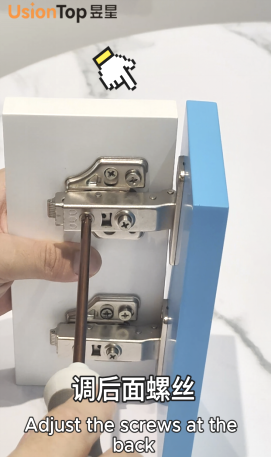

If the cabinet door doesn't close tightly (leaving gaps or popping open on its own), adjust the bottom screws. These screws control the "depth" of the door relative to the cabinet. Turning the screw clockwise will pull the door tighter against the cabinet, while counterclockwise will increase the distance. This issue is often caused by loose hinges due to frequent use, which is particularly common in high-traffic areas such as rental apartments and restaurants.

Pro tip: When adjusting hinges, always use a screwdriver of the correct size to avoid stripping the screws. Test the door after each minor adjustment—small tweaks often yield the best results. With its precise 3D adjustment design, UsionTop 3D Hinges make cabinet maintenance more convenient.
